Object-Oriented Programming (OOP) Grade 12

OOP lets you model real-world things as objects in code. Think of a class as a blueprint (like architectural plans for a house) and an object as the actual building made from that plan. One blueprint, many buildings — one class, many objects.

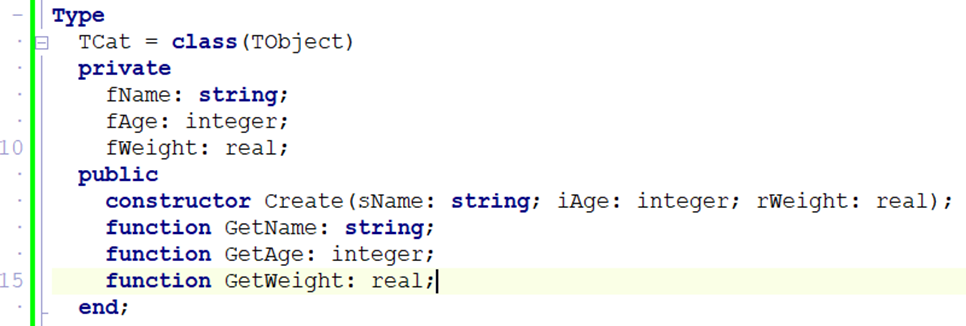

TCat class structure in Delphi's code view

Core OOP Concepts

Term	Definition
Class	A blueprint or template that describes what an object looks like and can do
Object	A specific instance of a class (like one particular cat — Whiskers)
Attribute	A variable that stores data about the object (e.g. fName, fAge)
Method	A procedure or function that belongs to the class (e.g. GetName, SetAge)
Constructor	Special method `Create` that creates an instance and sets initial values
Encapsulation	Hiding private data inside a class; only accessible through public methods
Inheritance	A new class inherits all attributes and methods of an existing (parent) class
Polymorphism	The same method name behaves differently in different classes

You already use OOP!

In Delphi, every component is an object. TButton is a class; btnOK is an object. TForm is a class; Form1 is an object. OOP lets you create your own custom classes.

One Class, Many Objects

A class is defined once. You can create as many objects (instances) from it as you need — each with its own data.

UML Class Diagram

Before coding a class, design it using a UML (Unified Modeling Language) diagram — a rectangle divided into 3 sections.

Encapsulation

Keep attributes private — hidden from the outside world. Only expose them through controlled public methods (getters and setters). This protects data from accidental or invalid changes.

Delphi — encapsulation

private
  fName: string;         // hidden from outside — direct access blocked
public
  procedure SetName(s: string);  // controlled write access (can include validation)
  function  GetName: string;     // controlled read access

Inheritance

A child class inherits all attributes and methods from a parent class, and can add or override its own. This avoids repeating code.

Delphi — inheritance

type
  TAnimal = class
    procedure Speak; virtual;  // can be overridden in child classes
  end;

  TDog = class(TAnimal)       // inherits everything from TAnimal
    procedure Speak; override;  // replaces TAnimal.Speak
  end;

  TCat = class(TAnimal)
    procedure Speak; override;
  end;

Polymorphism

The same method name (Speak) behaves differently depending on the type of object. "Many forms" — poly = many, morph = form.

Object	Method Called	Result
`objAnimal.Speak`	TAnimal.Speak	`'Animal sound...'`
`objDog.Speak`	TDog.Speak (overridden)	`'Woof!'`
`objCat.Speak`	TCat.Speak (overridden)	`'Meow!'`

Delphi — polymorphism

procedure TAnimal.Speak;
begin
  ShowMessage('Animal sound...');
end;

procedure TDog.Speak;
begin
  ShowMessage('Woof!');
end;

procedure TCat.Speak;
begin
  ShowMessage('Meow!');
end;

Types of Methods

Method Type	Keyword	Description
Constructor	`constructor`	Creates the object and sets initial attribute values. Called on the class name: `TCat.Create(...)`
Accessor (getter)	`function`	Returns the value of a private attribute. Read-only access.
Mutator (setter)	`procedure`	Updates the value of a private attribute. Can include validation.
ToString	`function`	Returns a string representation of the object's state — used for display.
Auxiliary	`private`	Internal helper methods used by other methods, not accessible from outside.

How to Create a Class in Delphi

Go to File → New → Unit – Delphi to create a new blank unit.
Save it in the same folder as your project (e.g. UCar.pas).
Type the class structure in the interface section (see template below).
Press Ctrl+Shift+C — Delphi auto-generates the method bodies in the implementation section.
Fill in the code inside each method body.
In your main form unit, add the unit name to the uses clause (e.g. uses ..., UCar;).

Ctrl+Shift+C is your best friend!

After writing the class declaration in the interface section, press Ctrl+Shift+C and Delphi automatically creates all the empty method implementations in the implementation section. You just fill in the code.

Complete Class Example — TCat

Delphi — TCat unit (UCat.pas)

unit UCat;

interface

type
  TCat = class
  private
    fName   : string;
    fAge    : integer;
    fWeight : real;
  public
    constructor Create(sName: string; iAge: integer; rWeight: real);
    function    GetName   : string;
    function    GetAge    : integer;
    function    GetWeight : real;
    procedure   SetName(sNew: string);
    function    ToString  : string;
  end;

implementation

constructor TCat.Create(sName: string; iAge: integer; rWeight: real);
begin
  fName   := sName;
  fAge    := iAge;
  fWeight := rWeight;
end;

function TCat.GetName : string;
begin
  Result := fName;
end;

function TCat.GetAge : integer;
begin
  Result := fAge;
end;

function TCat.GetWeight : real;
begin
  Result := fWeight;
end;

procedure TCat.SetName(sNew: string);
begin
  fName := sNew;
end;

function TCat.ToString : string;
begin
  Result := fName + ', Age: ' + IntToStr(fAge)
          + ', Weight: ' + FloatToStr(fWeight) + 'kg';
end;

end.

Practice Example — TCar Class

This is the kind of class you will write in a Grade 12 exam. Study the pattern carefully — constructor, accessors, mutator, ToString.

Delphi — UCar.pas (complete working class)

unit UCar;

interface

type
  TCar = class
  private
    fMake  : string;    // e.g. 'Toyota'
    fYear  : integer;   // e.g. 2022
  public
    constructor Create(sMake: string; iYear: integer);
    function    GetMake  : string;
    function    GetYear  : integer;
    procedure   SetMake(sNewMake: string);
    function    ToString : string;
  end;

implementation

constructor TCar.Create(sMake: string; iYear: integer);
begin
  fMake := sMake;
  fYear := iYear;
end;

function TCar.GetMake : string;
begin
  Result := fMake;
end;

function TCar.GetYear : integer;
begin
  Result := fYear;
end;

procedure TCar.SetMake(sNewMake: string);
begin
  fMake := sNewMake;    // could add validation here (e.g. check not empty)
end;

function TCar.ToString : string;
begin
  Result := fMake + ' (' + IntToStr(fYear) + ')';
  // Output example: 'Toyota (2022)'
end;

end.

Using TCar in the Main Form

Delphi — main form unit

// 1. Add UCar to uses clause of the main form
uses
  ..., UCar;

// 2. Declare object variable (global or local)
var
  objCar : TCar;

// 3. Create the object — in a button click or FormCreate
objCar := TCar.Create('Toyota', 2022);

// 4. Read values using accessors
lblMake.Caption := objCar.GetMake;                 // 'Toyota'
lblYear.Caption := IntToStr(objCar.GetYear);       // '2022'
memOut.Lines.Add(objCar.ToString);                 // 'Toyota (2022)'

// 5. Update a value using mutator
objCar.SetMake('Honda');
lblMake.Caption := objCar.GetMake;                 // 'Honda'

Always create before use!

Always call Create before using any other method. The object does not exist until it is created. Also make sure the class unit name is in the uses clause of your main form.

Using a Class in the Main Form

Delphi — main form (TCat example)

uses
  ..., UCat;

var
  objCat : TCat;

// Create the object
objCat := TCat.Create('Whiskers', 3, 4.2);

// Use its accessors
lblName.Caption := objCat.GetName;           // 'Whiskers'
lblAge.Caption  := IntToStr(objCat.GetAge);  // '3'
memOut.Lines.Add(objCat.ToString);           // 'Whiskers, Age: 3, Weight: 4.2kg'

// Update via mutator
objCat.SetName('Felix');
lblName.Caption := objCat.GetName;           // 'Felix'

Dynamic Components — Creating Controls at Runtime

You already know that every Delphi control is an object of a class (a button is a TButton, a label is a TLabel). Because they are classes, you can create them in code while the program is running using the same Create constructor you use for your own classes — instead of dragging them onto the form at design time.

This is called creating a dynamic component. It is useful when you don't know in advance how many controls you need (e.g. one button per record loaded from a file).

The Four Steps

Create the object from its class, passing the owner (usually the form).
Set the Parent so Delphi knows where to draw it (which form/panel).
Set properties like position, size and caption.
Assign an event handler so it actually does something when clicked.

Delphi — create a button at runtime

var
  btnDynamic : TButton;
begin
  // 1. Create the object (Form1 is the owner – frees it automatically)
  btnDynamic := TButton.Create(Form1);

  // 2. Set the Parent so it appears on the form
  btnDynamic.Parent := Form1;

  // 3. Set properties
  btnDynamic.Left    := 50;
  btnDynamic.Top     := 50;
  btnDynamic.Width   := 100;
  btnDynamic.Height  := 30;
  btnDynamic.Caption := 'Click Me';

  // 4. Assign an event handler (a procedure you wrote)
  btnDynamic.OnClick := btnDynamicClick;
end;

// The handler the button will run when clicked
procedure TForm1.btnDynamicClick(Sender: TObject);
begin
  ShowMessage('Dynamic button clicked!');
end;

Owner vs Parent — what's the difference?

Owner (the argument to Create) is responsible for freeing the component from memory when the form closes. Parent decides where on screen the component is drawn. They are usually the same form, but not always (e.g. Owner = Form, Parent = a Panel on that form).

Avoid memory leaks

If you create a component with Create(nil) (no owner), you must free it yourself with btnDynamic.Free; when you are done, otherwise it stays in memory. Passing the form as the owner lets Delphi clean up for you automatically.
